industrial sweeper - R850 N SKL LPG

compare with other products
brand : RCM category : Floor Sweeper code : R850 N SKL LPG

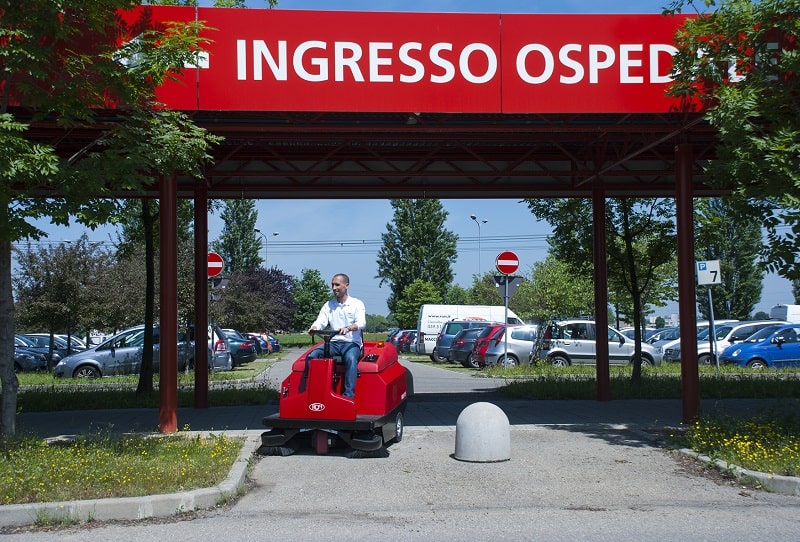

R850 N SKL LPG sweeper is a large, ride-on, outdoor sweeper which is manufactured by the Italian company of RCM. As an industrial cleaning machine with a maximum theoretical performance of 8340 square meters per hour, R850 N SKL LPG is capable of cleaning indoor and outdoor spaces like airports, food industries, multi-storey car parks and even medium to large industrial environments. The machine is equipped with two side brushes, and a central brush. Taking advantage of a cleaning width of 1390 mm, the machine has performed well in cleaning large environments or deep cleaning projects.

Being a hybrid cleaning machine for collecting garbage, R850 N SKL LPG takes advantage of retractable side brushes which retract to avoid having collisions with nearby obstacles. The machine is also equipped with a dust vacuuming system and cartridge filters with a high filtration level that vacuum the dust completely. The cylindrical brush of this industrial sweeper has a length of 850 mm which rotates counter-clock-wise and pours the waste into the tank from above. This way, a larger portion of the hopper will be used and both light and heavy pieces of garbage will be collected properly. The large waste container has a capacity of 120 liters and is equipped to wheels. There are two separate, removable containers which can be removed and emptied very easily.

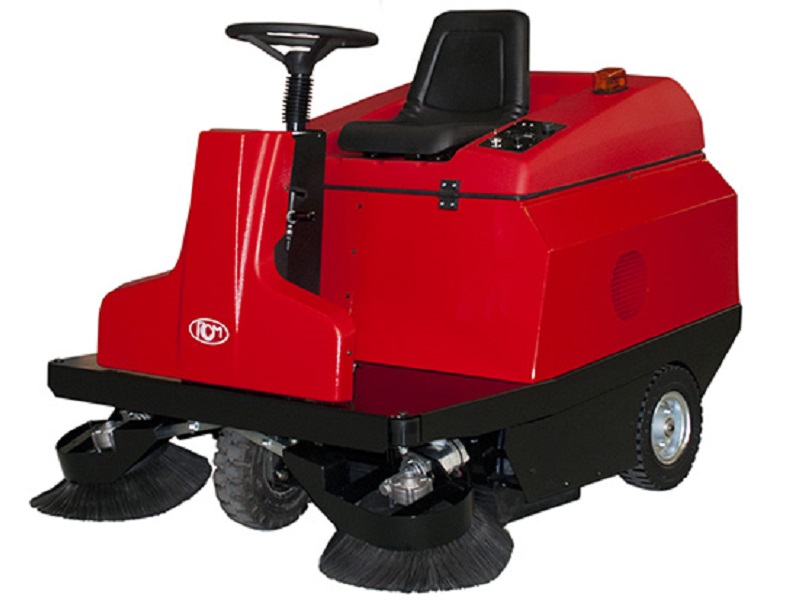

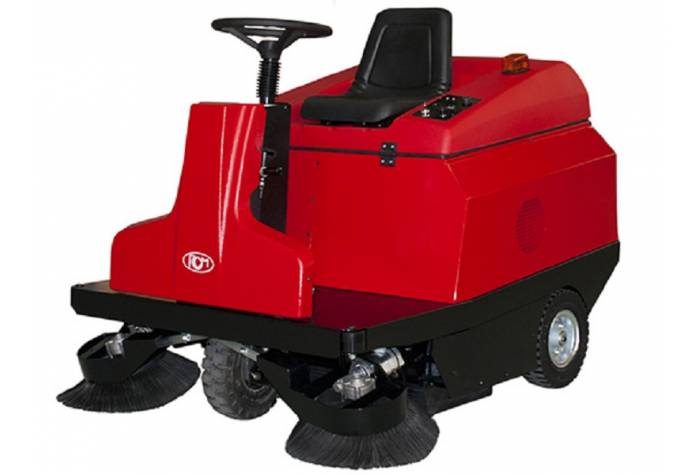

R850 N SKL LPG Sweeper

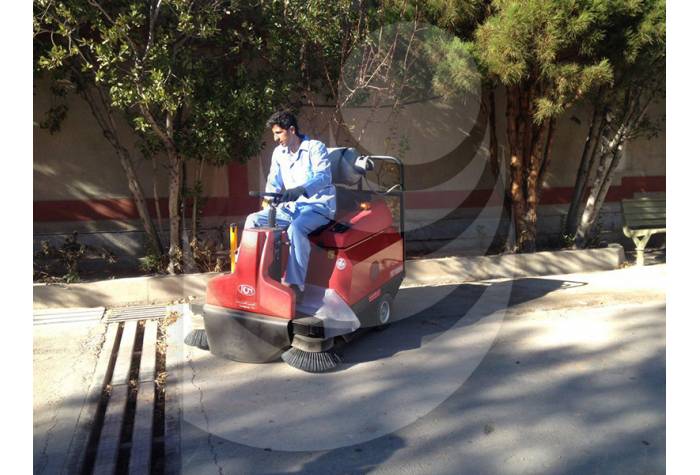

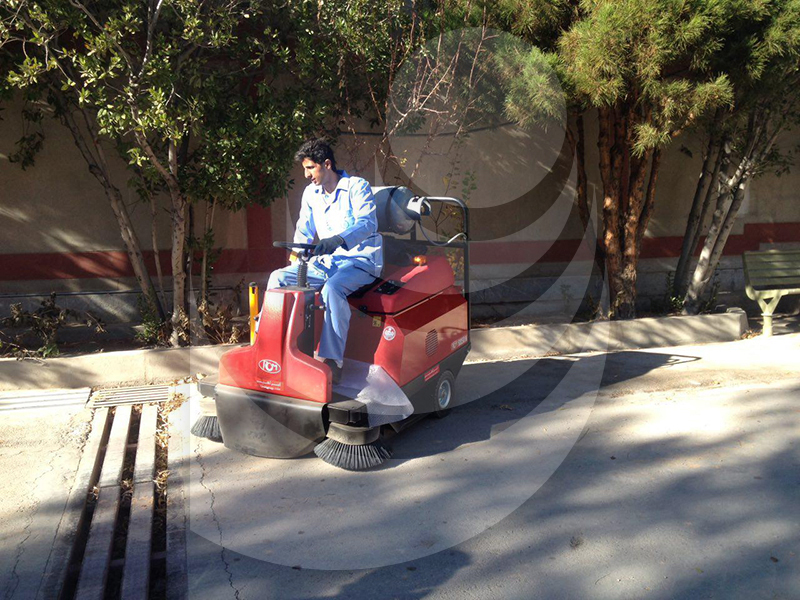

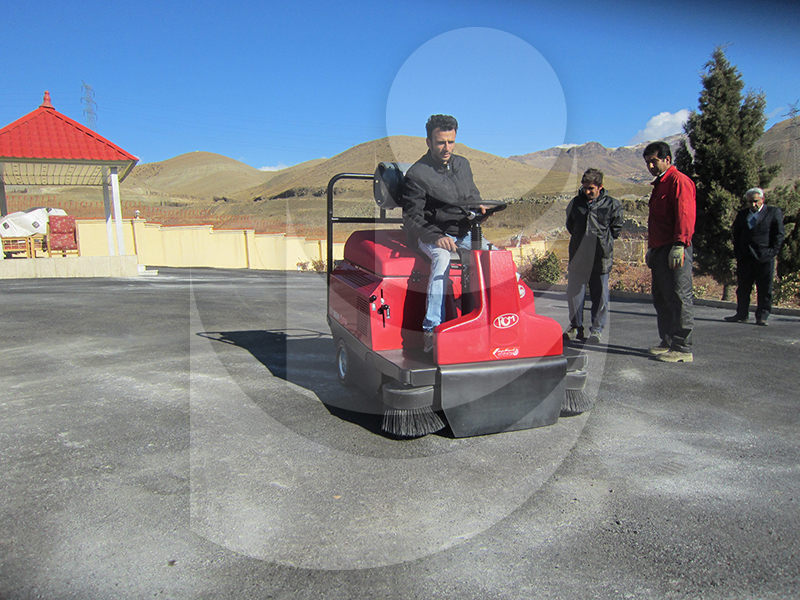

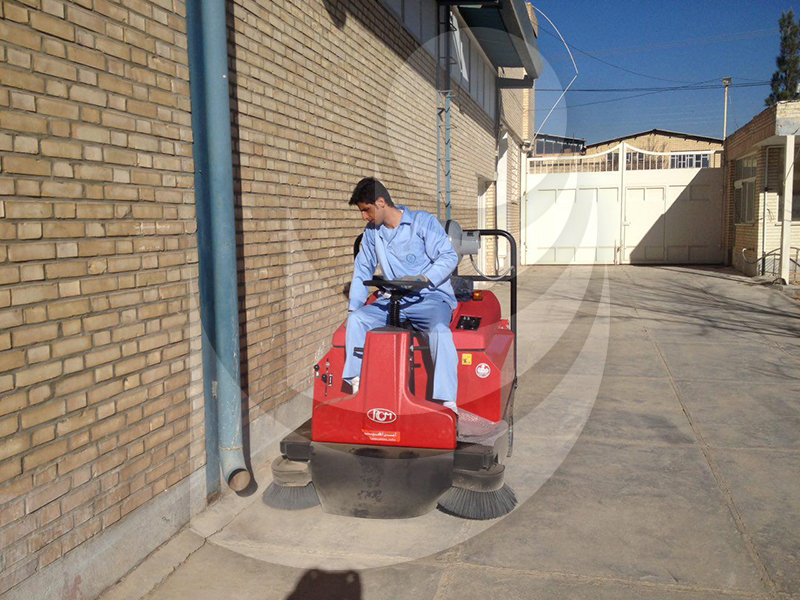

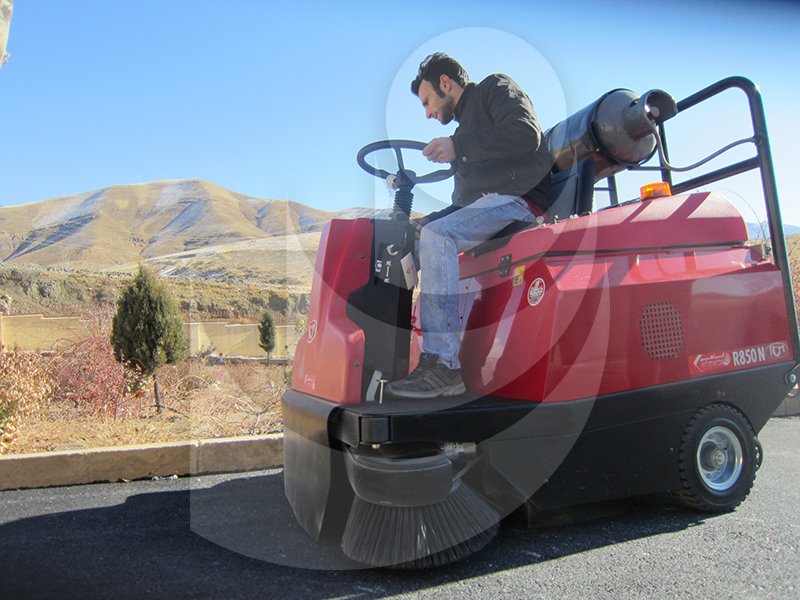

Since the adjustable seat of the operator is placed in the front of the machine, he will have a complete view of the surrounding while working. Such an open view helps him guide the machine better which at times promotes safety and cleaning quality. As a ride- on sweeper, R850 N SKL LPG is equipped with a steel chassis, a special flap which is suitable for collecting waste, large super elastic tires, and a flashing warning light. All in all, the machine can be easily controlled by the operator and has an easy structure which has made access to different parts easier and consequently facilitated service and maintenance.


R850 SKL LPG Distinguishing Features

R850 SKL LPG is the largest ride-on sweeper, whose waste container evacuation system is done manually. The machine’s great performance has made it a serious competitor for larger sweepers on the market. The machine has some very unique features, some of which will be mentioned here.


Hybrid Engine

One of the dominant features of this industrial sweeper is being hybrid. Being equipped with a hybrid system and the possibility of switching from gasoline to gas has not only led to a decrease in expenses but also a cut in producing toxic air pollutants and naturally an improvement in the quality of the air


Great Maneuverability

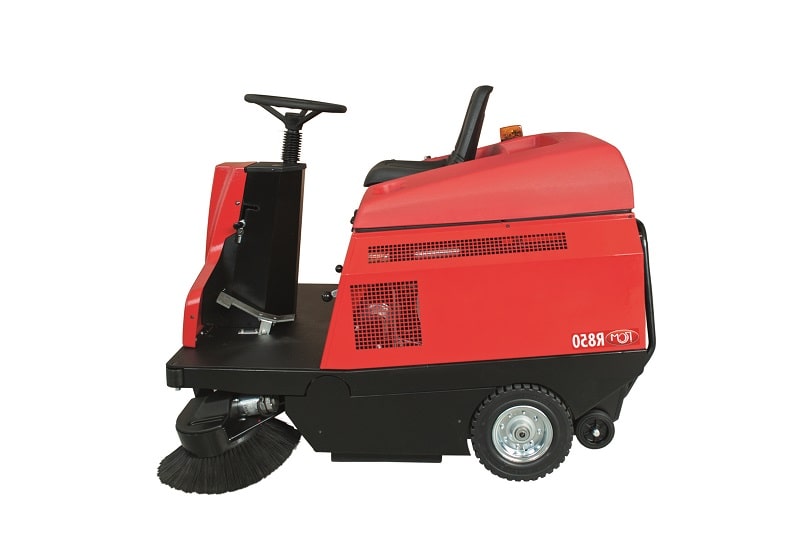

The machine is designed as a three-wheeled cleaning equipment, a feature which can improve the machine’s maneuverability and provides it with a smooth motion. One of these three wheels is placed in the front of the machine in order to improve maneuverability while turning around and preventing collisions while rotating.


Filtration System

This industrial sweeper is equipped with 6 cartridge filters with an area of six square meters which prevent fine dust particles from exiting the waste container and thus provide a healthier environment.

Operator’s open View

To provide the operator with visibility on the work area and thus promoting the cleaning quality and safety of the environment, the operator’ seat is placed in

the front of the machine.


Dust Control System

Dust Control System is one of the most efficient systems in industrial sweepers which vacuums the suspending fine dust particles resulting from brushing system and provides a better air quality.


Wheeled Waste Container

Th wheeled waste container has a capacity of 120 liters and to facilitate transferring the machine, not only is it equipped to wheels and a handle, but it also has two separate, portable containers.


Ergonomic Design

The machine is designed according to engineered principles thus it provides the operator with enough space and the sweeper is equipped with a comfortable seat which will lessen his fatigue.


Backward Rotation of the Central Brush

In order to make optimal use of the capacity of waste container and transferring the pollutants to the container in a better way, the cylindrical brush of R850 SKL LPG has a backward rotation.


Central Brush with V-Shaped Fibers

Having the central brush in the shape of a V plays an important role in promoting the power of the brush in transferring particles of different sizes to the waste container.


Retractable Central Brush

Side brushes are designed in a way that get retracted in case of colliding obstacles. This way, the machine will work for a longer time.


Solid Wheels

Taking advantage of solid wheels provides the machine with a smooth movement over different surface. The fact that the tires are puncture-proof, should also be taken into account.


Easy Service and Maintenance

Easy access to all part and components and not requiring any special tools for removing, and replacing the parts and components facilitate service and maintenance of R850 SKL LPG.


Warning Flashing Light

In order to improve safety of the environment while the machine is working, R850 SKL LPG is equipped with a flashing warning light.

technical specifications

general specifications

productivity (m2/h) 8340
Max speed (Km/h) 6-7
maximum gradient on ramp (%) 16-18
running time (min) 135
cleaning width (mm) 1390
minimum round width(cm) 213

tank specifications

hopper unloading manual
hopper capacity (L) 120

brush specifications

side brush diameter (mm) 430
Main brush length (mm) 850

suction unit specifications

types and number of vacuum centrifugal-1

filtration unit specifications

type and number of filter cartridge-6
filter cleaning system electric
filter area (cm2) 60000

motor and power supply specifications

motor type petrol-LPG
power (KW) 4.9
fuel tank capacity (L) 3.6
fuel consumption (L/h) 1.7
motor capacity (m3) 196
number of cylinders 1

physical specifications

weight (kg) 360
dimensions (L×W×H) (mm) 1500×1220×1210
