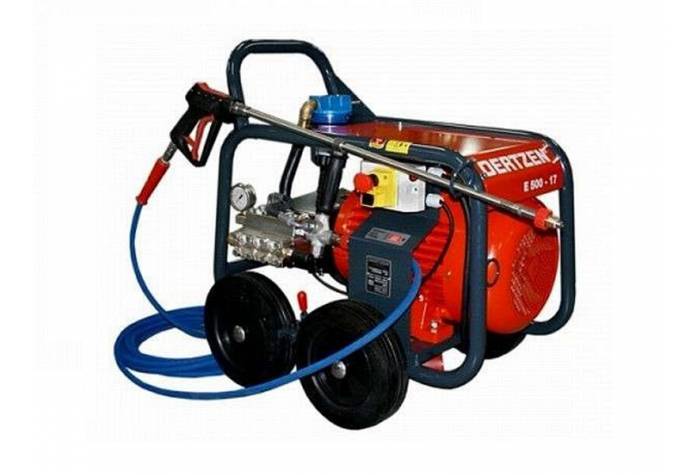

high pressure washer - E 500-17

compare with other products
brand : Oertzen category : Industrial Pressure Washer code : E 500-17

E 500-17 cold water high-pressure washer is a heavy duty machine which ensures a hassle free continuous operation. Its balanced ratio of water flow and operating pressure is ideal to meet all cleaning challenges. All European safety standards are applied to this product and it comes with CE symbol on the type plate. This high-pressure cleaner can be connected to an external hot box and it can be used as a hot water high-pressure cleaner.

Due to low speed high-pressure inline plunger pump and 100% duty cycle electric motor, this machine; E500-17 high-pressure washer can be used for continuous operation. The high-pressure washer comprises forged brass cylinder heads, wear-free ceramic plungers, splash-oil lubricated forged crankshafts and stainless steel valves.

A robust powder coated steel frame protects plunger pump and electric motor and lets the machine be used in the rough industrial operations. E 500-17 chassis is equipped with 4 wheels on twin axel. An additional locking brake provides E 500-17 high-pressure cleaner with considerable stability.

Efficient safety systems are provided for E 500-17 high-pressure cleaner. a thermo valve protects the pump from overheating. Water shortage control system protects the pump from cavitations.  The pump is protected from soiled water and impurities by a water microfilter. This machine is also equipped with an emergency stop button and frost protection system.

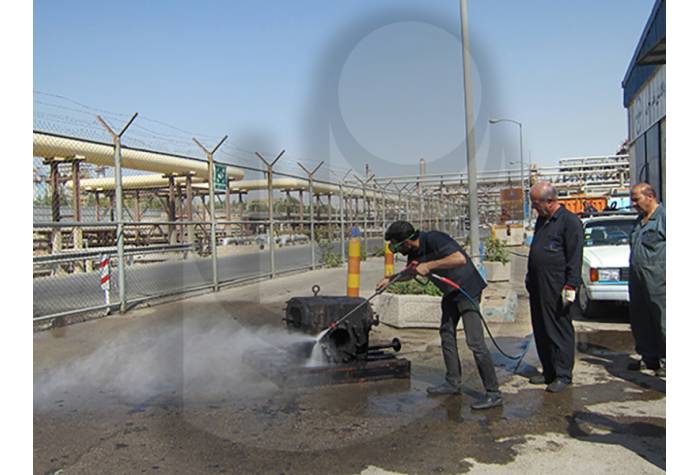

E 500-17 high-pressure washer is one of the most durable and reliable machines available on the market and it is able to deliver water with a pressure of 500 and this powerful machine can be used for water-sand blasting, paint removal, derusting, concrete restoration and different industrial cleaning. The range of application can be extended by a variety of accessories available from Oertzen.

E 500-17 high-pressure cleaner standard equipment include single lance with flat stream nozzle, high-pressure security piston and swivel joint, high-pressure safety hose, micro filter, water shortage control and  5-meter electric cable.

technical specifications

general specifications

max admissible over pressure (bar) 530
total stop system دارد

pump specifications

operating pressure (bar) 500
water output (liter/min) 17
inlet water temperature, max (˚C) 30
nozzle size 025

motor and power supply specifications

motor type 400/50
power (KW) 16.9
voltage - frequency (V - Hz) 400/50

physical specifications

high pressure hose length (m) 10
weight (kg) 159
dimensions (L×W×H) (mm) 800×600×800
