vacuum cleaner - Zefiro 60 M

compare with other products
brand : Delfin category : Industrial Vacuum Cleaner code : 0

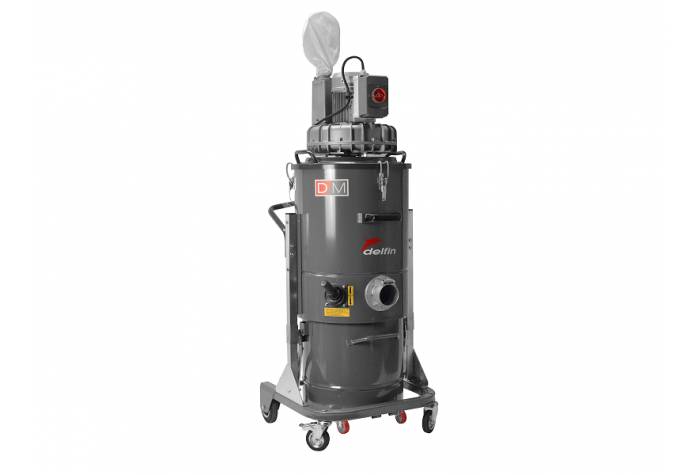

The Zefiro 60 M is a powerful industrial vacuum cleaner with flexibility of application. This machine is compact that is suitable to collect large amount of wet and dry material simultaneously at industrial places. The vacuum cleaner has been equipped with a turbine motor which is very silent and it has been designed for continuously working in 24 hours, also the turbine motor is maintenance free .The suction inlet is mounted blow of the filter, so it is possible to suck up liquids without making filter wet and clogged. There is control unit on the machine to check the suction performance and filter clogging; moreover it is a diffuser filter above the exhaust prevents to enter outer particles into the motor.

The construction and chassis of the three phase vacuum cleaner, Zefiro 60 T, are made of strong steel completely by epoxy paint; also there is a large capacity and detachable waste container on this vacuum cleaner. The tank can be separated easily by special handles and it has two small wheels under the container to convenient carry full hopper into the discharge location. In addition of detachable tank, there is possibility of using a disposable nylon bag to remove very fine particles or hazardous materials from the environment.

This vacuum cleaner contains a huge surface class L star filter which can trap 3 microns particles pollution in itself. The filtration unit is really great and effective which performs consequently. An integrated manual filter shaker is mounted on the industrial vacuum cleaner to high performance filter cleaning. It means when the user moves the handle, the filter will vibrate up and down, thus the particles remove, as a result this operation will not allow to blockage the filter. When the filter works efficiency, the suction power will place in high level too.

technical specifications

general specifications

material steel
IP-class 55
standard CE - ISO9001

tank specifications

hopper capacity (L) 60

suction unit specifications

types and number of vacuum side channel / 1
waterlift max (mh2o) 3000
air flow max (m3/h) 330
suction inlet (mm) 80

filtration unit specifications

type and number of filter star / 1
filter cleaning system shaker
filter area (cm2) 20000
filter class L
air load on primary filter (m/h) 157

motor and power supply specifications

motor type turbine
power (KW) 2.2
voltage - frequency (V - Hz) 230 / 50

physical specifications

noise level (db) 74
weight (kg) 80
dimensions (L×W×H) (mm) 700×730×1700
